Public samples

Open a sample workflow before asking for a pilot.

These samples show the concrete product object: circuit context, generated source, route rationale, counts, export formats, and an evidence manifest. They are examples, not live provider job claims.

Open Bell State View evidence model

Simulator starter

Bell State

Two-qubit entanglement demo that shows the shortest public path from visual circuit to generated source, counts, and evidence.

2qubits4ops4,096shots

Inspect complete record

Algorithm lab

Grover Search n=2

Small Grover workflow for classrooms and pilot teams that need a readable oracle, generated source, and a run trace.

2qubits12ops4,096shots

Inspect complete record

Hybrid starter

QAOA Max-Cut 4-node

A four-node Max-Cut starter that makes parameterized circuit structure and benchmark evidence visible without claiming a finished optimizer suite.

4qubits24ops8,192shots

Inspect complete record

Pilot record

QF-2048 Supply-chain Pilot Record

A public pilot-style route record that demonstrates brief, validation circuit, source, simulator baseline, route rationale, and reviewer packet without pretending the circuit solves the supply-chain problem.

8qubits16ops4,096shots

Inspect complete record

Simulator starter

Bell State

Two-qubit entanglement demo that shows the shortest public path from visual circuit to generated source, counts, and evidence.

Qubits

Operations

Shots

4,096

Route rationale

Local Qiskit Aer simulator, no provider token required

Complete 4,096-shot 00/11 distribution in a reviewer-safe result packet

Counts

112,072

002,024

Qiskit

from qiskit import QuantumCircuit

qc = QuantumCircuit(2, 2)
qc.h(0)
qc.cx(0, 1)
qc.measure([0, 1], [0, 1])

Evidence manifest

{
  "workflowId": "QF-SAMPLE-BELL",
  "runner": "qiskit-aer",
  "artifacts": [
    "generated-qiskit.py",
    "generated-openqasm.qasm",
    "counts.json",
    "counts.csv",
    "trace.json"
  ],
  "privateFieldsExcluded": [
    "providerCredentialId",
    "userEmail",
    "billingState",
    "adminNotes"
  ]
}

Inspect method, full counts, limits, and sources

QFlow Studio code lab screen used for a Grover sample workflow

Algorithm lab

Grover Search n=2

Small Grover workflow for classrooms and pilot teams that need a readable oracle, generated source, and a run trace.

Qubits

Operations

Shots

4,096

Route rationale

Local simulator first, provider preflight optional

Marked 11 state amplified across the complete ideal-simulator distribution

Counts

114,096

Qiskit

from qiskit import QuantumCircuit

qc = QuantumCircuit(2, 2)
qc.h([0, 1])
qc.cz(0, 1)
qc.h([0, 1])
qc.z([0, 1])
qc.cz(0, 1)
qc.h([0, 1])
qc.measure([0, 1], [0, 1])

Evidence manifest

{
  "workflowId": "QF-SAMPLE-GROVER-N2",
  "runner": "qiskit-aer",
  "artifacts": [
    "oracle-notes.md",
    "generated-openqasm.qasm",
    "counts.json",
    "trace.json",
    "reviewer-note.md"
  ],
  "privateFieldsExcluded": [
    "providerCredentialId",
    "workspaceMembers",
    "teacherPrivateNotes"
  ]
}

Inspect method, full counts, limits, and sources

QFlow Studio quantum chip close-up used for a QAOA Max-Cut sample workflow

Hybrid starter

QAOA Max-Cut 4-node

A four-node Max-Cut starter that makes parameterized circuit structure and benchmark evidence visible without claiming a finished optimizer suite.

Qubits

Operations

Shots

8,192

Route rationale

Simulator run with provider-fit notes; optimizer benchmark is marked as pilot scope

Complete fixed-parameter distribution exported with graph and parameter context

Counts

1001978

1010803

11001,001

11011

11111,341

00001,267

01101,051

0011953

0101797

Qiskit

from qiskit import QuantumCircuit

gamma = 0.72
beta = 0.39
qc = QuantumCircuit(4, 4)
qc.h(range(4))
for a, b in [(0, 1), (1, 2), (2, 3), (3, 0)]:
    qc.cx(a, b)
    qc.rz(2 * gamma, b)
    qc.cx(a, b)
qc.rx(2 * beta, range(4))
qc.measure(range(4), range(4))

Evidence manifest

{
  "workflowId": "QF-SAMPLE-QAOA-4",
  "runner": "qiskit-aer",
  "artifacts": [
    "graph.json",
    "parameters.json",
    "counts.json",
    "cost-trace.csv",
    "evidence-manifest.json"
  ],
  "privateFieldsExcluded": [
    "providerCredentialId",
    "budgetControls",
    "internalApproverNotes"
  ]
}

Inspect method, full counts, limits, and sources

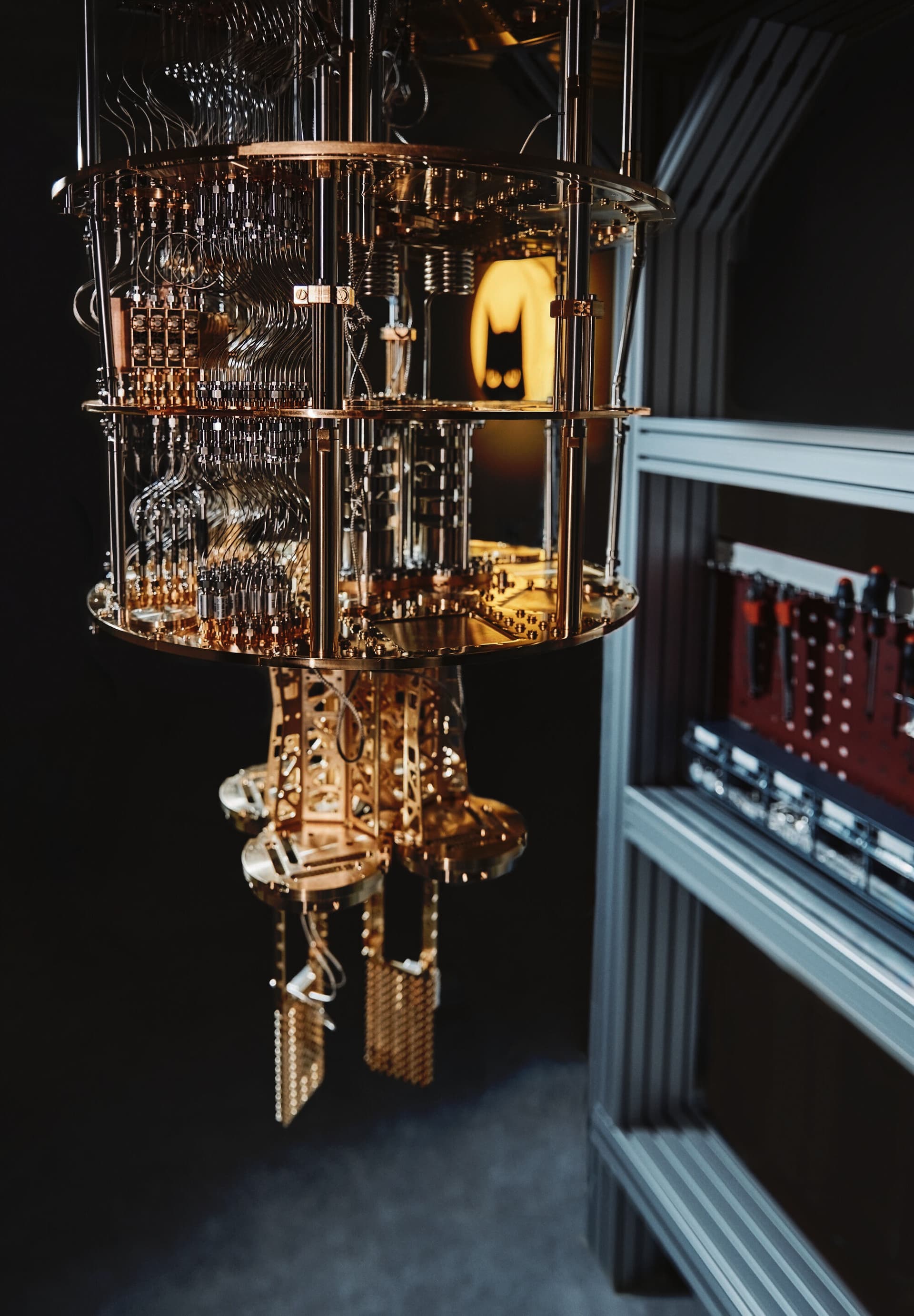

QFlow Studio quantum hardware context used for the QF-2048 supply-chain sample workflow

Pilot record

QF-2048 Supply-chain Pilot Record

Qubits

Operations

Shots

4,096

Route rationale

Seeded simulator route fixture first; optimization encoding and hardware route remain gated

Complete validation counts and trace ready for review without exposing credentials

Counts

111111112,004

000000002,092

Qiskit

from qiskit import QuantumCircuit

qc = QuantumCircuit(8, 8)
qc.h(0)
for target in range(1, 8):
    qc.cx(target - 1, target)
qc.measure(range(8), range(8))

Evidence manifest

{
  "workflowId": "QF-2048",
  "runner": "qiskit-aer",
  "artifacts": [
    "brief.md",
    "generated-qiskit.py",
    "route-rationale.md",
    "counts.csv",
    "run-trace.json"
  ],
  "privateFieldsExcluded": [
    "providerCredentialId",
    "workspaceBilling",
    "adminNotes",
    "rawProviderResponse"
  ]
}

Inspect method, full counts, limits, and sources
