Analysis and 3D Topology
Use analysis and topology views to understand circuit health, block depth, qubit structure, and provider fit before execution.
Updated May 26, 2026QFlow StudioNormal userTeacher
Analysis views help users answer whether the workflow is ready to run. Topology views help users see structure that is difficult to read from a flat list.
Use analysis before provider selection. Use topology when connectivity, depth, or visual explainability matters.
Purpose
Use analysis and topology views to understand circuit health, block depth, qubit structure, and provider fit before execution.
Where it fits
This page belongs to the Build Workflows section and should be read with the related pages listed at the end.
Review boundary
Use screenshots and notes to explain product behavior without exposing private credentials, admin state, or customer data.

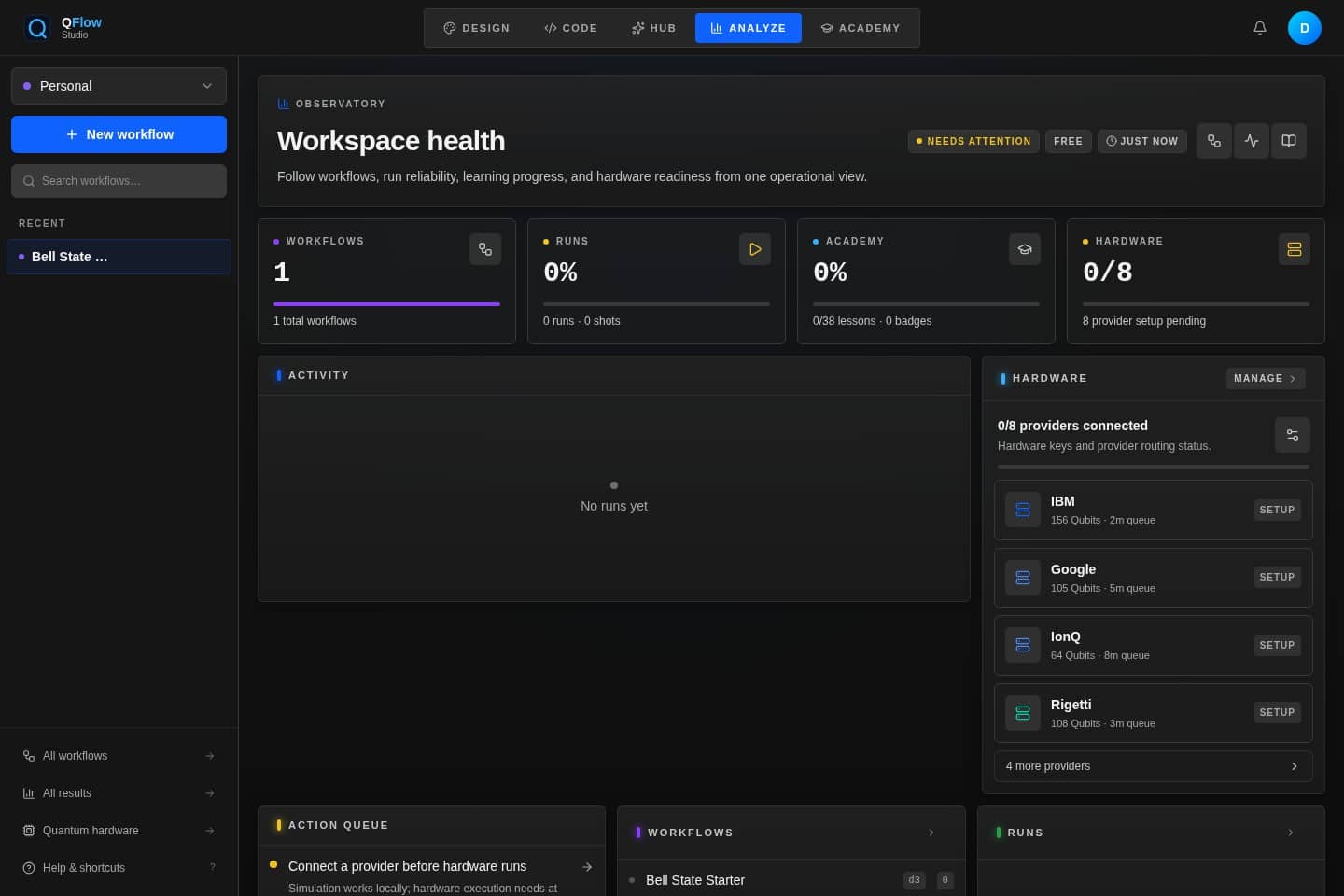

Analysis is a preflight surface
The analysis tab is where circuit health, metrics, warnings, and evidence preparation belong.
If a workflow has warnings, document the decision: fix the workflow, choose a different provider route, or explicitly accept the constraint for a simulator run.

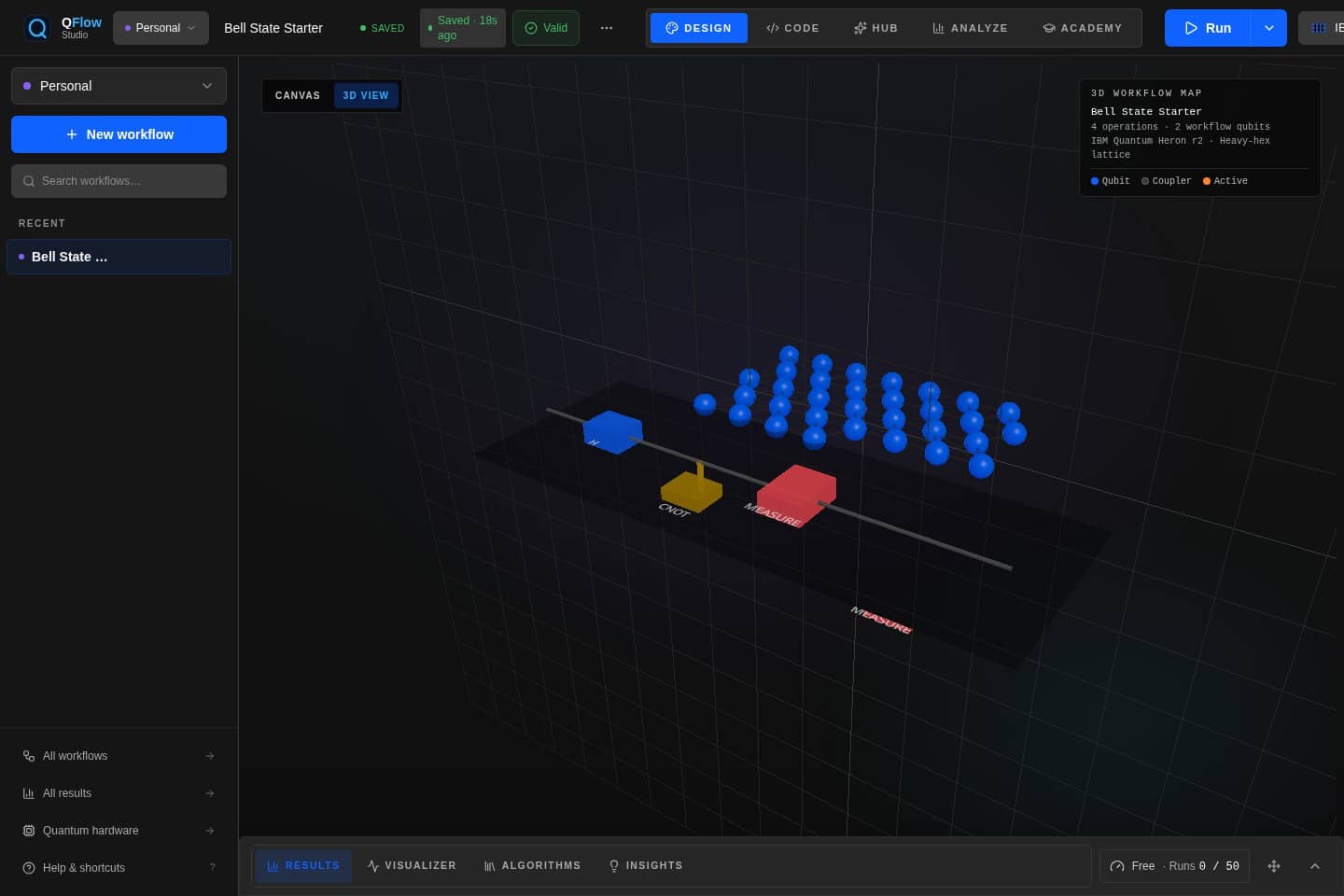

Topology should clarify, not decorate
A 3D view is useful only if it helps users understand workflow shape, block relationship, or qubit structure.
Use the topology view to explain why a route or circuit decision makes sense, not as a replacement for source review.
